SCP
TYPE
SCP type represents
the Sun Strollâ of a scratch resistant, no

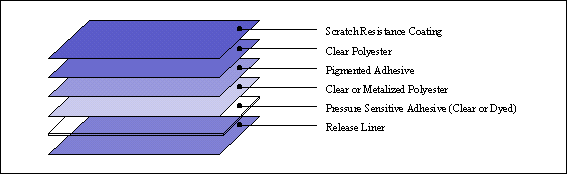

discoloration type. The SCP type is structured as a two ply and therefore, with
this film construction, we will be able to provide customers with much ultra
violet and infrared protection than any other types of window film.
|
SCP GA 020
Performance Data |
|
% Total Solar Transmittance |
16 |
|
% Total Solar Absorptance |
59 |
|
% Total Solar Reflectance |
25 |
|
% Visible Light Transmittance |
19 |
|
% U.V. Transmittance |
2 ¯ |
|
U Factor |
0.94 |
|
Shading Coefficient |
0.49 |
|
% Total Solar Energy Rejected |
73 |
|
Physical Properties |
|
Thickness of Polyester Film (m m) |
50 |
|
Scratch Resistant Coating |
2 H |
|
Peel Strength (Kg/Inch) |
0.7 |
|
Ball-Tack (No.) |
8 |
|
|
SCP GA 005
Performance Data |
|
% Total Solar Transmittance |
19 |
|
% Total Solar Absorptance |
63 |
|
% Total Solar Reflectance |
18 |
|
% Visible Light Transmittance |
12 |
|
% U.V. Transmittance |
2 ¯ |
|
U Factor |
0.91 |
|
Shading Coefficient |
0.45 |
|
% Total Solar Energy Rejected |
48 |
|
Physical Properties |
|
Thickness of Polyester Film (m m) |
50 |
|
Scratch Resistant Coating |
2 H |
|
Peel Strength (Kg/Inch) |
0.7 |
|
Ball-Tack (No.) |
8 |
|
SCH
TYPE
SCH type represents
the Sun Strollâ of a scratch resistant, pigment, and
adhesive coated type. Customers can use this type of Sun Strollâ
for various purpose from automobile windows to the glasses of buildings. Its
high performance in abrasion resistance function will not allow the surfaceof
the Sun Strollâ being abraded or scratched semi
permanently.
|
SCH GA 020
Performance Data |
|
% Total Solar
Transmittance |
42 |
|
% Total Solar Absorptance |
30 |
|
% Total Solar Reflectance |
28 |
|
% Visible Light
Transmittance |
18 |
|
% U.V. Transmittance |
2 ¯ |
|
U Factor |
1.04 |
|
Shading Coefficient |
0.81 |
|
% Total Solar Energy
Rejected |
36 |
|
Physical Properties |
|
Thickness of Polyester
Film (m m) |
25 |
|
Scratch Resistant Coating |
2 H |
|
Peel Strength (Kg/Inch) |
0.7 |
|
Ball-Tack (No.) |
8 |
|
|
SCH GA 005
Performance Data |
|
% Total Solar
Transmittance |
40 |
|
% Total Solar Absorptance |
33 |
|
% Total Solar Reflectance |
27 |
|
% Visible Light
Transmittance |
14 |
|
% U.V. Transmittance |
2 ¯ |
|
U Factor |
1.03 |
|
Shading Coefficient |
0.83 |
|
% Total Solar Energy
Rejected |
32 |
|
Physical Properties |
|
Thickness of Polyester
Film (m m) |
25 |
|
Scratch Resistant Coating |
2 H |
|
Peel Strength (Kg/Inch) |
0.7 |
|
Ball-Tack (No.) |
8 |
|
 | The technical data contained in this sheet of a sample are guides to the
use of SUNSTROLL. Data shown is nominal and only for estimating purpose.
Since performance data and properties will be changed with be changed with
processing condition, users should not rely upon it absolutely. |
|
Test method: |
ASTM
D-1044, 4060 & JIS A-5759 & JIS R-3106. All films are tested on the
inside of 0.25" glass by UV / VIS / IR Spectroscopy.
|
